BEAMNOVA Electric Concrete Vibrator Strong Hand Vibrator 13000rpm 4.9 Ft Shaft Handheld Power Pencil Vibrator for Highway Bridge Foundation Construction

Main Features:

Efficient & Long Reach: BEAMNOVA hand-held concrete vibrator is lightweight (only 9.92lbs) to allow less fatigue and vibrating head gains speed up to 13000 rpm. The vibrator shaft is of 1-3/8 diameter and the length is up to 15-1/8 ft. Strong Hand Vibrator helps to enlarge your work range and improve work efficiency.
Useful: Immerse the head of the concrete vibrator into wet concrete to remove any trapped air and excess water to allow the concrete to settle within the formwork properly and solidly. Also, you can use concrete vibrating tool to level the concrete.

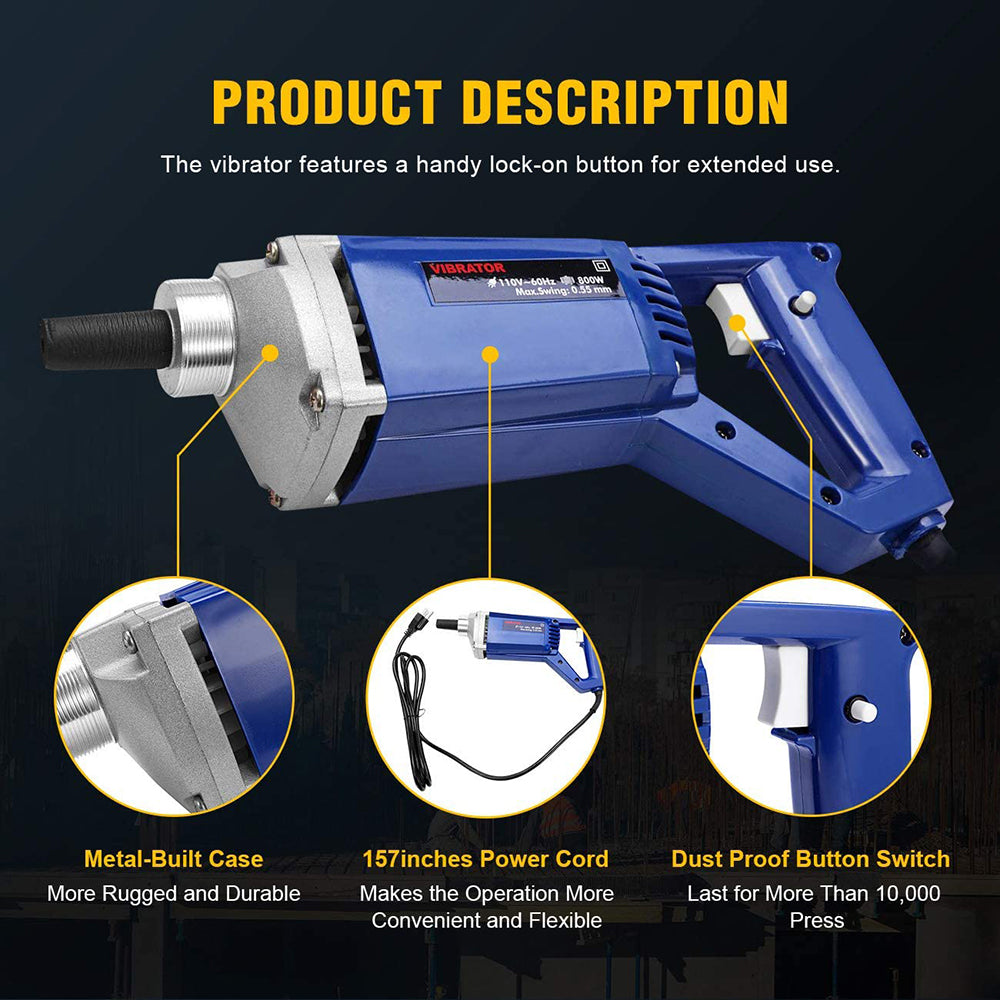

User-Friendly Design: Metal-Built Case is lightweight, rugged, and durable, able to prevent cement from penetrating. The dustproof button switch for safe and easy to operate, lasting for more than 10,000 press. The vibrating 1-3/8 inch head is capable of inserting into concrete via small holes or gaps. 15-1/8 ft vibrator shaft can reach deeper and farther. 157 inches power cord makes the operation more convenient and flexible.
Widely Applicable: Electric vibrator for concrete, helps to remove air bubbles, and excess water and level the concrete. Great for patching and construction job, pouring process of cement pillars, obstruction of highway fence and bridge, pouring process of cement grape rack, etc.
Note: When the item doesn't work after staring, pls gently tap the head of the vibrator to engage it. If the machine still does not start after this operation, please kindly contact us.

Specification:

Voltage: 110V
Speed: 13000RPM
Diameter: 1-3/8 inches/35mm
Product Width: 1-3/8 inches/35mm
Vibration Rod/Head Length: 15-1/8 inches

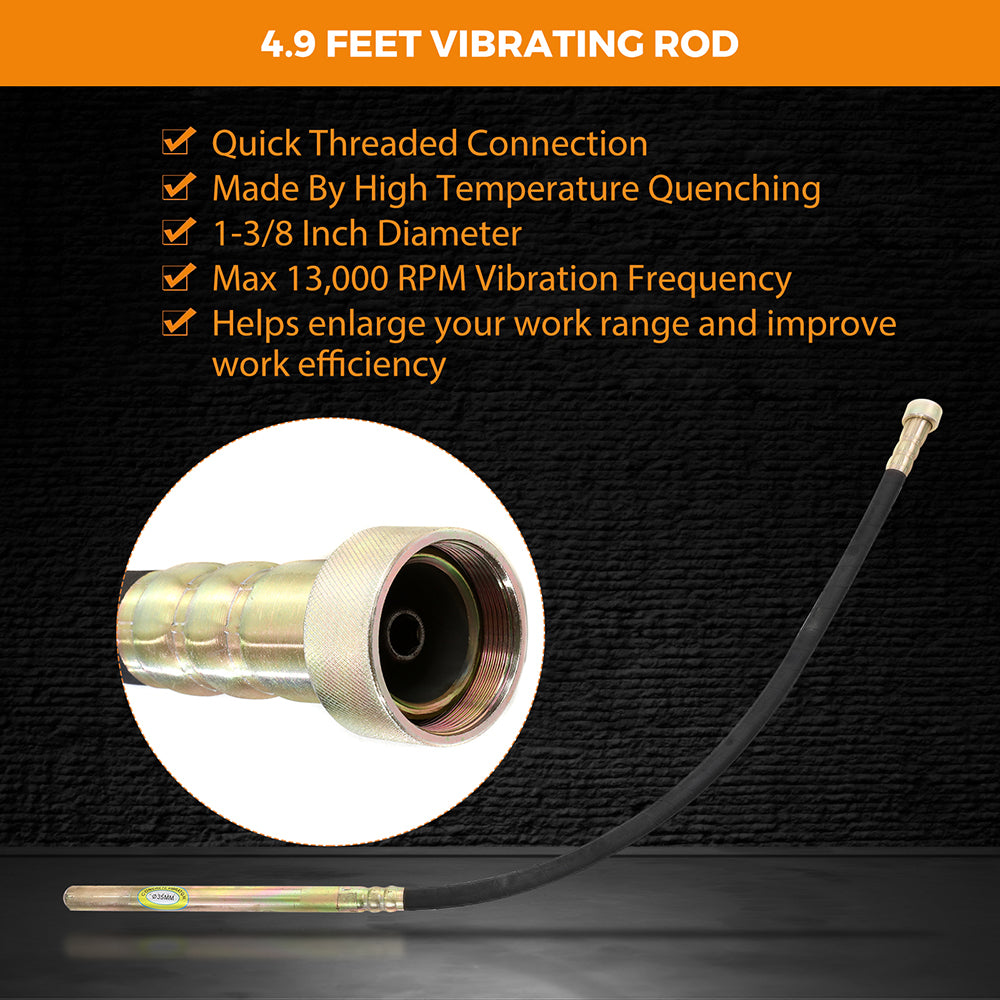

Shaft Length: 4.9 feet/1.5m
Length of The Power Cord: about 157inches/4m

Dimension:

Package Size: 59.00 x 42.00 x 10.00 cm / 23.23 x 16.53 x 3.94 inch
Package Weight: 8.03kg/17.70lb

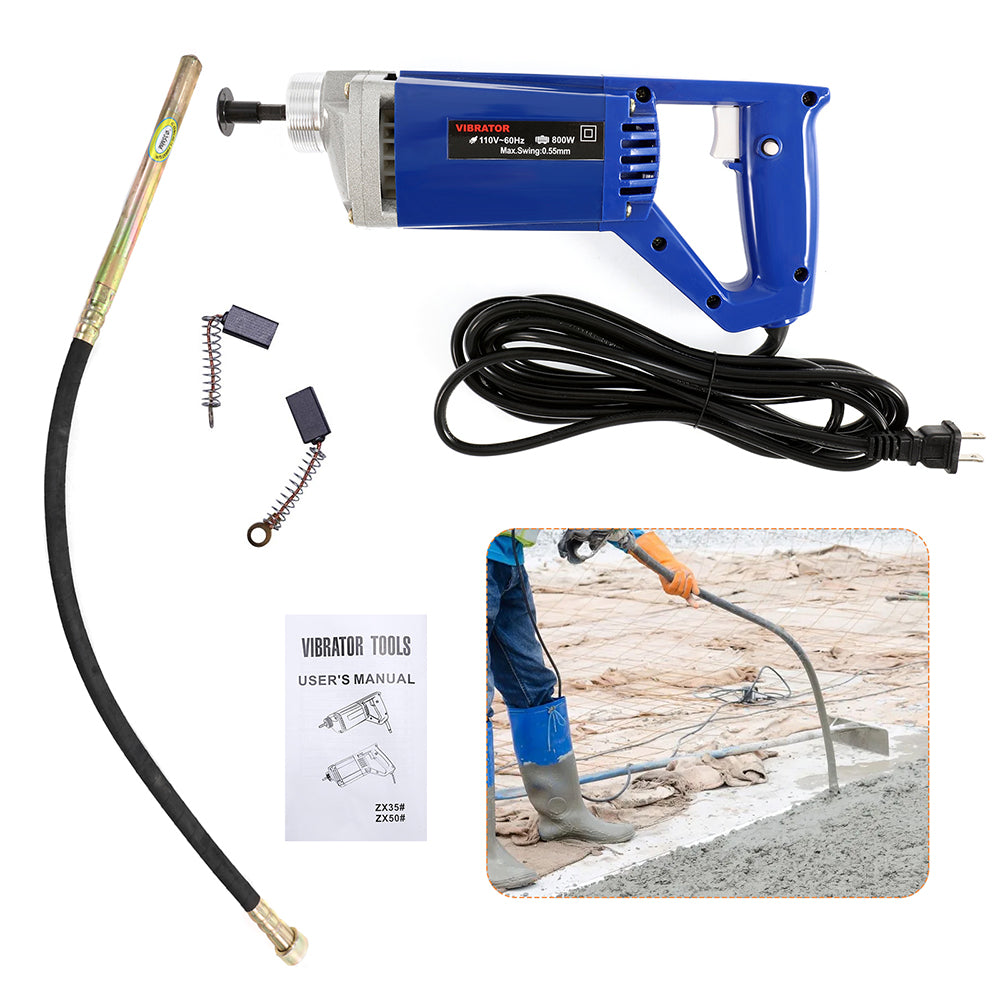

Package Contents:

1 Set of Concrete Vibrator
1 x User Guide

Use, Maintenance, and Precautions for Vibrating Bars:

1. Please check the vibrator power supply for good contact and ensure correct wiring before use. Connect the vibrating rod after selecting the correct running direction according to the mark.
2. If there is no vibration after the power is applied, please slightly knock the tip of the vibrating rod to the ground till the vibrating bar emits a smooth and powerful squeaking sound. Then the vibrating operation can be performed.
3.When the vibrator is working, the vibrating bar should be inserted into the concrete vertically or obliquely. The vibrating bar should be twitched up and down during the vibration process.
4. In the case of layered pouring of components or buildings, when vibrating the next layer, the vibrating rod should be inserted into the vibrating layer to eliminate the layer indirect seam to obtain the overall pouring effect.
5. After the vibrator has been working for half an hour, it should be stopped for a period of time to prevent mechanical heating and damage.
6. In order to protect the service life of the flexible shaft and hose, the bending radius of the hose during use should be greater than 500mm.
7. After using the vibrating bar for 50-100 hours, all parts in the rod should be disassembled for cleaning. When disassembling, first unscrew the tip, hose, and joint, then use a wooden hammer to strike the roller cone protruding from the tip of the rod, take out the roller cone and bearing, oil seal, etc., and then remove the hose connector.
8. After cleaning, replace the damaged parts and reinstall them. All parts except the bearings must be completely cleaned of oil. The cone, the raceway cone, and the casing should be absolutely oil-free and dry.
9. Install the vibrating rod. The threaded connection must be tightened. If necessary, add waterproof rubber or raw tape to prevent the water and mortar from penetrating into the rod, causing the vibrating rod to be weak or vibrating.
10. In the process of using the vibrating rod, if the vibration is weak or not vibrating, the vibrating rod can be disassembled, the oil seal and bearing damaged in the rod are inspected and replaced, and the cone surface of the casing and the raceway and the rolling cone are cleaned. After reassembling, you can operate it for work.
